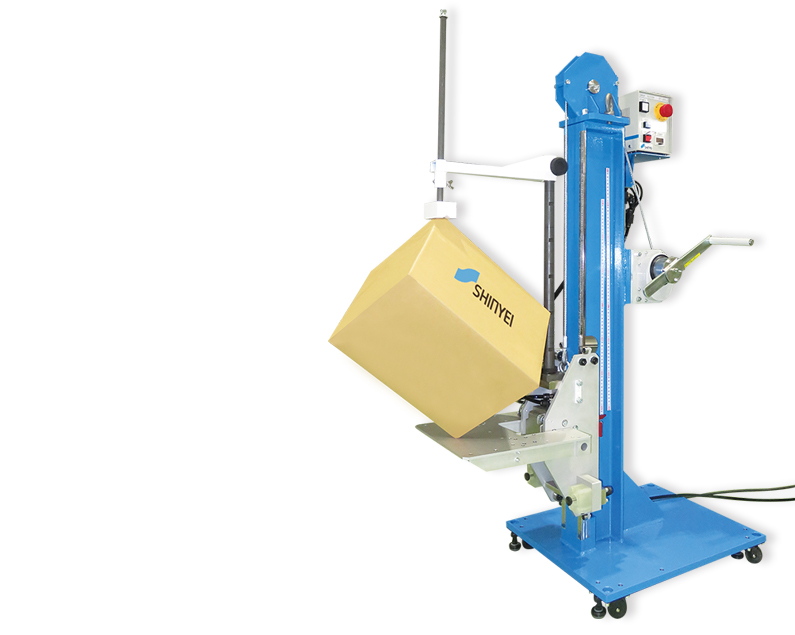

DROP TESTER DT-20e

Drop Tester for Compact Packaged Freight

DT202TB

Drop Tester with Compact seize and Simple Function

DT-20e is a compact drop tester that can evaluate cushion-ing performance of compact packaging freight. This model is compact in size and can be installed to any location and is easy to use by anyone. You will be able to carry out drop testing for your packaging design anytime anywhere.

Features

  • Specialized for small and light packaged freight
  • Compact to install
  • Low noise
  • High Reproducibility
  • Easy Maintenance for Long Term Usage
  • Easy-to-Use Test Settings
  • Simple Setting by Simple Construction

Applied Standard

  • ISO 2248
  • ASTM D5276
  • IEC 60068-2-31
  • JIS Z 0202
  • JIS Z 2022

Applications

Drop test for package freight.

※ In the case of falling product alone without packaging, high precision surface falling is difficult because of deflection of shape / center of gravity acts.

Options

  • Handy controller
  • Ligit surface base
  • Jig for edge or angle dropping
  • Mat switch
  • Photoelectric sensor
  • Indicator light
  •

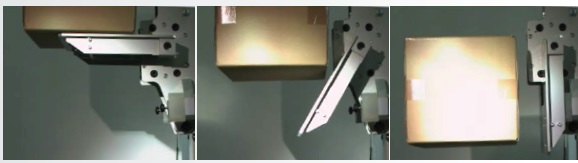

DT-20e Drop Motion

DT-20e Drop Motion

Specification

Model DT-20e
Specimen max weight (kg) 20
Specimen max size (mm) W500 × D370 × H350
Drop height range (mm) 300 ~ 1000
Drop motion Drop table with high speed rotation
Weight (kg) 100
Size (W × D × H mm) 565 × 400 × 1425
Power supply AC100 ~ 240V, 50/60Hz, 5A
Supply Air Pressure (MPa) 0.7 or more
