Measuring Instruments for RAIL WAYRailway

SHINYEI TESTING MACHINERY, we handle various measurement and measuring instruments for railway such as 'Vibration Recorder', 'Acceleration measurement system', 'Vibration Measurement and Analysis System for Shinkansen, Train, Various Railroad Vehicles and Railway Retainers', 'Wheel load measuring device', 'Wheel tread wear meter' and etc.

TY-50 series - Wheel Diameter Measuring Instrument

TY-50 series - Wheel Diameter Measuring Instrument

For the operation safety of trains, the diameter of the tire is a critical parameter to be maintained. TY-50 is very simple in construction to measure that very pa-rameter and the diameter can be known at sight. You can use this instrument even in the narrowest of sites due to the diameter scale displayed on both sides. This can be attached to the measured flange with the magnet .

More Details

TY-50D series - Wheel Diameter Measuring Instrument

TY-50D - Digital Wheel Diameter Measuring Instrument

TY-50D with 7seg LED display is simple in construction to measure the diameter of wheel. Also the magnets can attaches to wheel supports easy to measure.

More Details

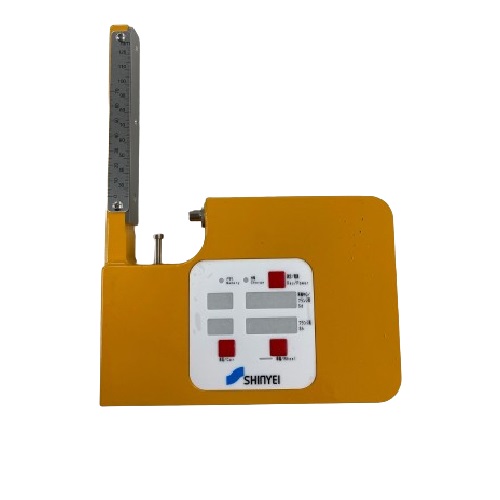

TOD-500 - Digital Tire Measuring Instrument

TOD-500 - Digital Tire Measuring Instrument

TOD-500 can measure the flange height and its thick-ness (or the distance from the centre of axis simulta-neously) just by setting the instrument along the tire and pushing one button. Based on the theoretical side, it also can measure the tire thickness. Its LED display shows the result even in dark places.

More Details

TWL series - Wheel Weighing Machines

TWL series - Wheel Weighing Machines

TWL series can measure wheel loads on the track of any kind cars to keep the bilateral weight balance of the train and cargo using an analog dial scale or a digital scale.

More Details

TS-3D - Wheel Abrasion Tester

TS-3D - Wheel Abrasion Tester

TS-3D can record the wheel tread surface shape not only from wheels removed from the vehicle, but also from those still fitted in.

More Details

Railway Back Gage 41022, 41023

Railway Back Gage 41022, 41023

Back Gage provides easy measuring of back side distance.

More Details

FG-2 - Portable Pressure Gauge for Railway Equipment

FG-2 - Portable Pressure Gauge for Railway Equipment

FG-2 can measure the air pressure of railway equip-ment easily.

More Details

OCH-3 - Railway Measuring Instrument

OCH-3 - Railway Measuring Instrument

Lightweight measuring instrument OCH-3 can measure height of the coupler on the operating rail track.

More Details

OS series - Oil Syringe for Railway

OS series - Oil Syringe for Railway

Scaled cylindrical Lubricator oil syringe OS, tips of the filler, offered in 2 types. Straight and curved type.

More Details

UHA series - Vibration Recorder

UHA series - Vibration Recorder

UHA can measure the vibrations on the railed vehicles to evaluate the rail road track conditions and to maintain the railed vehicles. Vibration data is recorded real-time, processing to a PC card and can be printed it out. Also, data is analyzed via specialized PC software .
