Drop Tester DTS Series

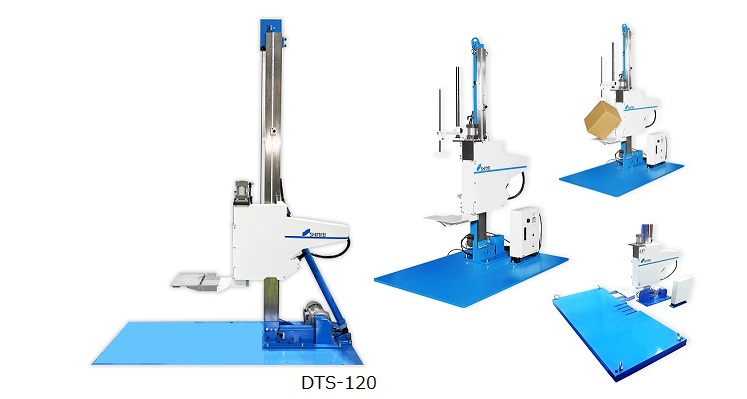

Drop Tester for Packaged Freight DTS-50, DTS-80, DTS-120[New model released] DTS-120
Popular Model of Drop Test for Packaging
This is a drop tester for packaging that has an air-driven cylinder and tension spring that functions by releasing the sample faster than the free falling speed,
aiding the free falling of test sample.
This system allows for a dramatic improvement in the falling posture of the test sample and a faster testing cycle. You can conduct accurate drop test using this model.
Model DTS-120 can perform drop test with 20cm drop height evenif large package such as air conditioner compressor unit or large home appliance products using the hinge mechanizm of package holding table.
Features
- Specialized for packaged freight
- Wide range of test samples
- High Reproducibility
- Easy Maintenance for Long Term Usage
- Easy-to-Use Test Settings
- Simple Setting by Simple Construction
DTS-120 movie
Applied Standard
- ISO 2248
- ASTM D5276
- IEC 60068-2-31
Applications
- Free drop test of packaged freights.
- Fragility test of products.
Option for DTS
- Support Jig for corner/edge drop
- Basement for drop test at low height
- Safety installations
(Safety fence, Mat-switch, Photoelectric Sensor) - Shock acceleration measuring device Shock Manager(Model:SM-500)

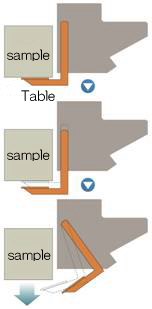

Mechanism diagram
Specification
| Model | DTS-50 | DTS-80 | DTS-120 |
|---|---|---|---|
| Specimen max weight(kg) | 50 | 80 | 120 |
| Specimen max size (mm) | W900 × D510 × H900 | W900 × D575 × H900 | W1000 × D800 × H900 |
| Drop height range (mm) ※ | 200 ~ 1200 | 200 ~ 1800 | |
| Operation with drop test | High-speed vertical & rotational motion. | ||
| Capacity (kg) | 300 | 420 | 800 |
| Size (mm) | W920 × D1480 × H1975 | W1000 × D1750 × H2583 | W1300 × D2000 × H2600 |
| Power supply | AC200V, 3 phasese, 5A | AC200V, 3 phasese, 10A | |
| Air pressure (MPa) | 0.6 or more | 0.7 or more | |
※ Depends on standard specification (Maximum drop height can be customed)
