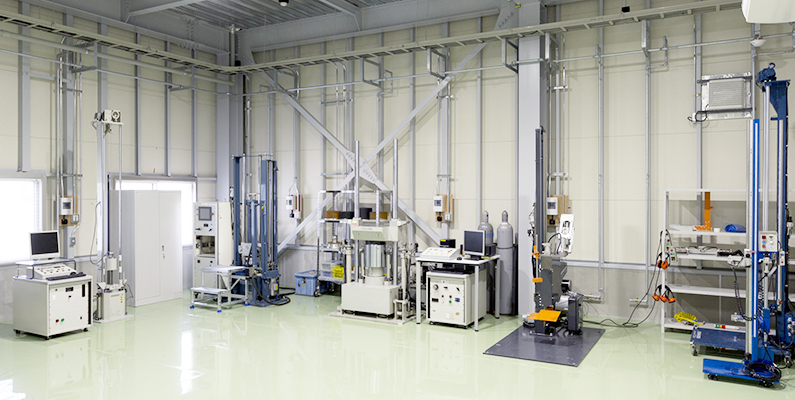

Testing Services

Testing Services

This service is provided in Japan only.

Dynamic characteristic test of cushioning materials can be tested. Also, in a test repeated an automatic operation, reduction in cushioning effect and loss in thickness which result from impact applied repeatedly can be measured.

  • There are no Drop testing / Shock testing equipments in your company,
  • There are not enough specific equipments to test in your company,
  • If you want to increase your knowledge about Drop Tester / Shock Tester,
  • If you have any other questions about Drop Tester / Shock Tester,

List

Test items Testing machine model Desctiption
Drop Test DT-202 Specimen max weight 2 kg.
Drop height range up to 1500mm.
DT-205H Specimen max weight 5 kg.
Drop height range up to 2000mm.
DTS-80 Specimen max weight 80 kg.
Drop height range up to 1500mm.
Shock Test ASQ-500 Specimen max weight 75 kg.
Acceleration range Half-sine up to 400G,
Trapezoidal up to 100G.
HDST230 Specimen max weight 10 kg.
Acceleration range Half-sine up to 2000G.
PST-300 Specimen max weight 0.8 kg.
Acceleration range Half-sine up to 5000G.
HGP-150 Specimen max weight 3 kg.
Acceleration range Half-sine up to 30,000G.
Testing of cushioning materials ACST-200 Specimen max size (mm) 200 x 200mm
Field Data Recorder DER-1000 Continuous record time, Maximum 100days.
Sampling 0.25ms -, Memory size 1GB.
Calibration System for Shock Acceleration SM500 A/D Convertor Sampling rate Max. 1MHz.
Availability of channels up to 10 channels
High-speed camera MEMRECAM HX-7 Photographing condition : Speed 200,000fps(max)
Number of pixels:2,560×1,920pixel(max)
*Depends on setting condition.
