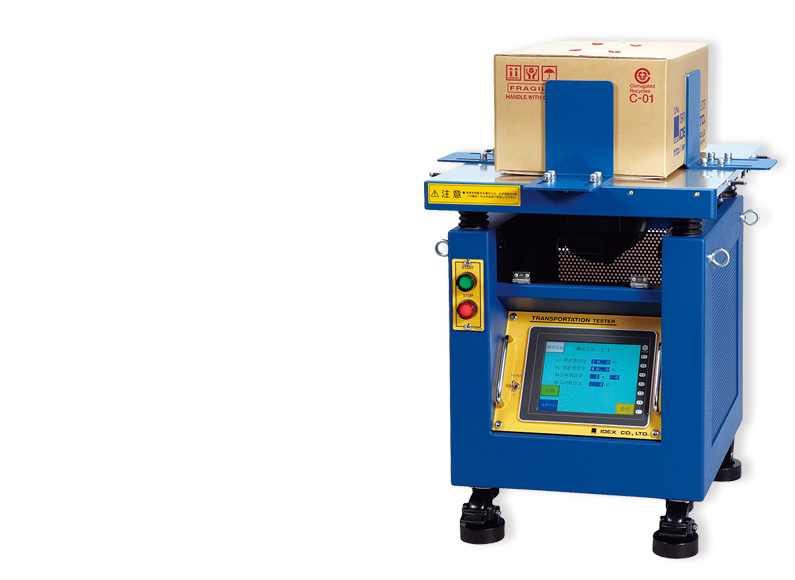

Transportation Tester BF-50UT

Transportation Tester BF-50UT

BF-50UT

3D Vibration Tester with Sine-wave for Packaging

BF-50UT is able to reproduce the 3-axis (X・Y・Z) simulta-neous vibration similar to real transportation conditions and simulate left-right turns by a truck. It only takes 20 minutes to reproduce conditions equivalent to distances of 1000km by truck. Up to 50kg load capacity can be evaluat-ed. This tester is suitable for reproducing the rubbing of outer packaging or contents during transportation.

Features

  • Reproduce the triaxle vibration which is equivalent to the vibration on the truck
  • Compact design doesn't need for specialized construction. Installation space requires only 1m3
  • Vibration generator of fixed amplitude type

Application

  • Evaluation of vibration resistance of packaging
  • Rubbing test of the inner and outer packaging of products

Specification

Model BF-50UT
Vibration direction 3-axis simultaneous vibration (up / down, right / left, front / rear)
Adjustable displacement range (mmP-P) 0.2 ~ 2.6
Vibration table size (mm) 500 × 600 with L type jig
Frequency range (Hz) 10 ~ 67 (0.1 Hz increments)
Acceptable acceleration range (m/s²) 98 (10G)
Maximum loading weight (kg) 50
Operation mode MANUAL / RANDOM / SWEEP / TRANSPORTATION
Temperature (℃) 0 ~ 40 (No condensing)
Power source AC200 ~ 240V, 3 phases, 50 / 60Hz, 2A or below
Size (W × D × H mm) 500 × 600 × 650
Capacity (kg) approx. 80
Standard accessory 3-Dimensional wireless vibration recorder / 1 set
