OCH-3 - Railway Measuring Instrument

Railway OCH-3

OCH-3

Product outline

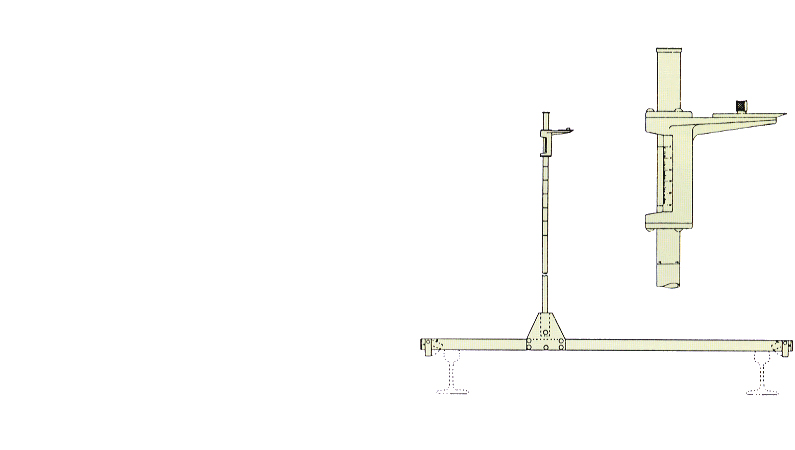

Lightweight measuring instrument OCH-3 can measure height of the coupler on the operating rail track.

Features

  • Measures the height of the coupler of articulated vehicle.
  • Constructed of light weight ridge aluminum is apply to the instrument.
  • Measuring rod can be fold for easy carrying.
  • Measurement gradation is easy to read with 1mm scale spacing.

Specification

Model OCH-3
Range of measurement (mm) 700~1100
Line width(mm) 1435 as standard model 1067 as narrow model
