DROP TOWER DT-205 series

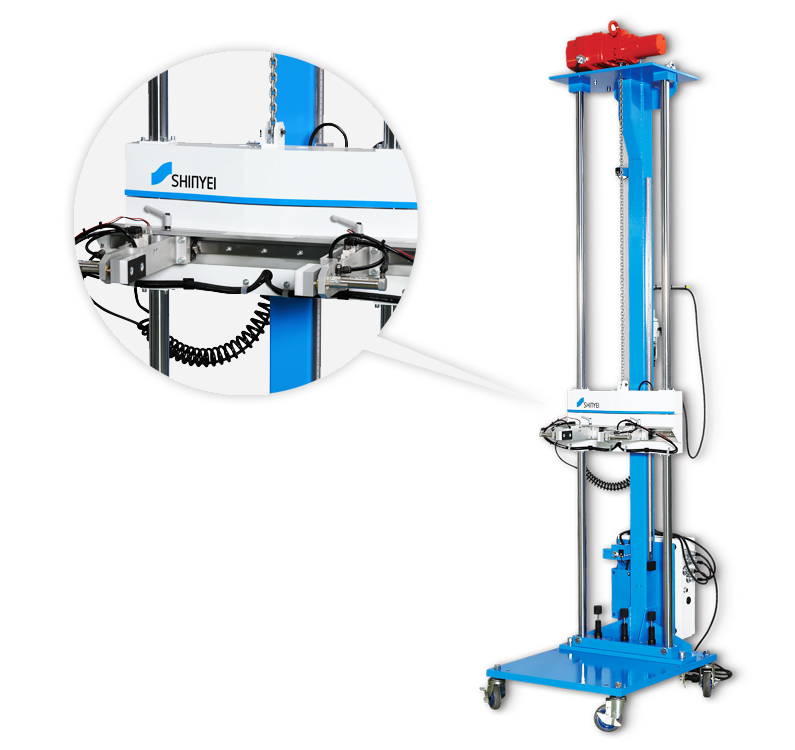

Drop Tester for Mobile Products DT-205, DT-205H, DT-205M, DT-205MH
[New model] DT-205M series released

DT202TB

Drop Tester for Mobile Products such as mobile phone, smart phone, tablet, laptop.

DT-205 / DT-205H are drop testers designed for products, containers and packaging materials ,weighing up to 5kg. They can be used for drop testing in a broad variety of in-dustrial products, including electronic devices such as note-book PC and HDDS, medical products, cosmetic and food products.
DT-205M / DT-205MH is a long life model that can lift the supporting base by motor(DT-205 series is by chain block) that is suitable for requiring many test cycles. Tester specification and operational system is same as DT-205 series.

Features

  • Specialization to light and small specimen
  • High Reproducibility
  • Easy Maintenance for Long Term Usage
  • Easy-to-Use Test Settings
  • Easy-Installation to any Location
  • Simple Setting by Simple Construction

Applications

  • Drop test for food, medicine, cosmetics.
  • Drop test for Laptop computers and electrical equipment.
  • Drop test for packaged goods and various samples.

Applied Standard

  • IEC 60068-2-31
  • JIS C 60068-2-31

Analysis system with high-speed camera

Sample configuration of analysis system with high-speed camera

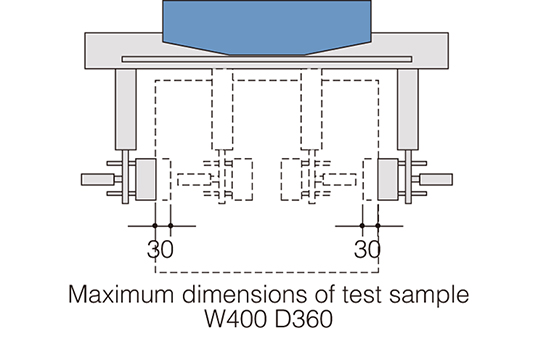

Detail drawing of supporting base.

DT-205 Detail drawing of supporting base.

Specification

Model DT-205 DT-205H DT-205M DT-205MH
Specimen max weight (kg) 5
Drop height range (mm) 500 ~ 1500 *1
250 ~ 1500 *2
500 ~ 2000 *1
250 ~ 2000 *2
500 ~ 1500 *1
250 ~ 1500 *2
500 ~ 2000 *1
250 ~ 2000 *2
Setting of drop height Scale and pointer
Falling motion of support table By electric magnet
Holding / Releasing specimen Air pressure pen cylinder
Lifting of supporting base Chain Block Motor
Size (W × D × H mm) 600 × 700 × 2500 800 × 900 × 3000 600 × 700 × 2500 800 × 900 × 3000
Weight (kg) about 180 about 280 about 180 about 280
Power supply AC100V, single phase, 5A AC200V, 3 phases, 5A
Supply Air Pressure (MPa) 0.69 or more
Usage environment temperature range (℃) 5 ~ 35 (JIS test location Standard temperature state Class 4)
*1 drop test with specimen supporting jig
*2 drop test without specimen supporting jig, release the cylinder at setting height
