Railway Back Gage 41022, 41023

Railway Back Gage

Railway Back Gage 41022, 41023

Product outline

Railway Back Gage 41022, 41023 provides easy measuring of back side distance.

Features

  • Easy measuring of back side distance.

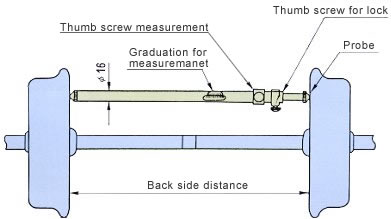

Railway Back Gage 41022 Size

Railway Back Gage 41022

Specification

Model 41022 41023
Range of measurement (mm) 982 ~ 1002 1350 ~ 1370
Accuracy of measurement (mm) ±0.1
Capacity (g) 750 950
