SHOCK TOWER HDST series

High Speed Drop Shock Tester HDST Series

High Speed Drop Shock Tester HDST is the best option in Shock Machine’s to ensure prod-ucts such as smartphones, tablets, computers and other mobile devices are able to withstand shock. By applying high acceleration to computer parts, smart phones, tablets, laptops, cellular phones, and various mobile products to conduct product fragility test.

衝撃試験装置 HDST-150

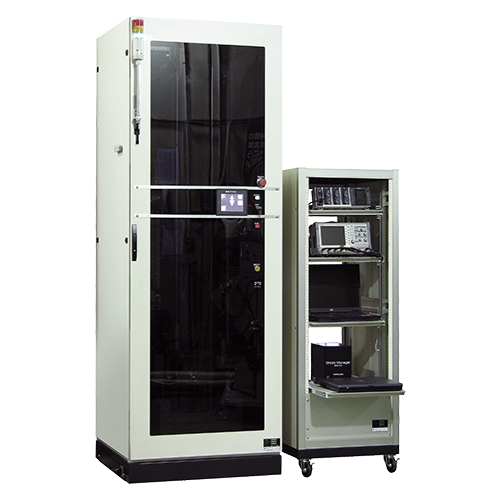

Shock Machine HDST-150

Feature

  • HDST-150 series for a shock testing standard of JEDEC and JEITA
  • A half-sine shock pulse can be generated a required shock duration by replacing a programmer.
  • High rigidity table makes a high reproducibility and high accuracy.
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.
  • Rebound brake mechanism by automatically controlled.
  • High speed test cycle by a unique drop mechanism.
  • Safety accessories are standard equipment.

Application

  • This machine can evaluate and compare with a shock resistance of substrates as JEDEC / JEITA standard. High speed analysis system inputs a electrical resistance (voltage) ocuured on sample substrate fixed on shock table when repeatedly shock are given to it.
HDST-230

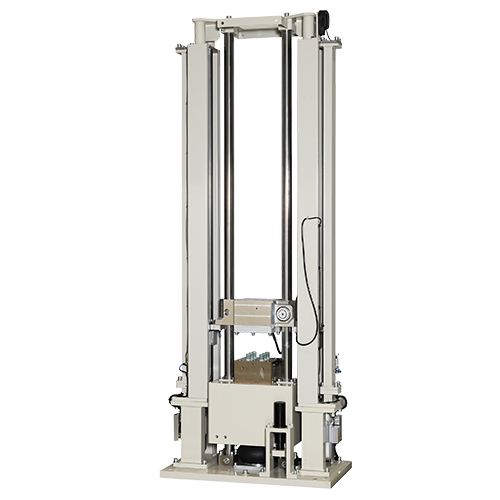

HDST-230 Shock Machine HDST-230

Feature

  • A half-sine shock pulse can be generated to produce a required pulse duration by replacing a programmer.
  • Rebound brake mechanism by automatically controlled.
  • High rigidity table makes high reproducibility
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.

Application

  • Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.
HDST-230HS

HDST-230HS Shock Machine HDST-230HS

Feature

  • Maximum acceleration 49000m/s² (0.5ms)
  • High shock pulse can be generated by a low height machine with a pull-down system.
  • Automatic control ensures operability and safety.
  • Vibration insulation seismic base apply machine to various environment.
  • Various analysis are available by combination with shock manager SM-500

Application

  • Shock test for mobile phone, note PC, HDD etc.
  • Shock test for substrates and various mechanical components.
  • Shock test for various electronical parts, etc.
HDST-300

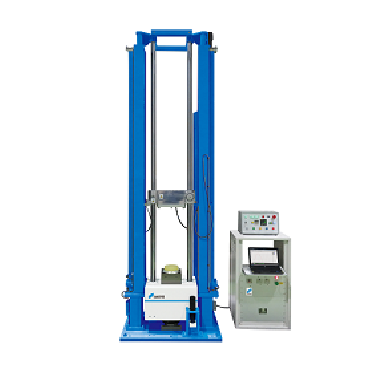

HDST-300 Shock machine HDST-300

Feature

  • A half-sine shock pulse can be generated to produce a required pulse duration by replacing the rubber pad.
  • Rebound brake mechanism by automatically controlled.
  • High rigidity table makes high reproducibility
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.

Application

  • This shock tester applies to a high shock acceleration for computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

Specification

Model HDST-150 HDST-230 HDST-230HS HDST-300
Table size (mm) 150 × 160 230 × 230 230 × 230 300 × 300
Specimen max
weight(kg)
1 10 5 20
Shock pulse Half-sine
Acceleration
range (m/s²)
14700
(1500G)
29400
(3000G)
49000
(5000G)
29400
(3000G)
Pulse duration
range (ms)
0.5 / 1.0 0.5 / 1.0 / 2.0
Seismic base Pneumatic springs and hydraulic damper device
Brake mechanism Pneumatic-hydraulic friction brake system
Controller Manual & auto cycle control
Size
(W × D × H mm)
1000 × 800 × 2330 1000 × 600 × 2675 1000 × 600 × 3970 1100 × 640 × 2700
Capacity (kg) 600 1200 1400 1500
Controller Size
(W × D × H mm)
520 × 400 × 950 520 × 400 × 950 520 × 400 × 950 520 × 400 × 950
Power supply 200V-10A
Applied
Standards
JEDEC (JESD22-B111), JEITA (ET-7409/106), MIL-STD-810F
JIS C 60068-2-27, IEC 60068-2-27-87

オプション Option

Shock manager
SM-500
Input the required shock acceleration, calculation of test conditions, measure shock acceleration and do various analysis of multiple channels.
Safety device Mat switch / photoelectric switch.
