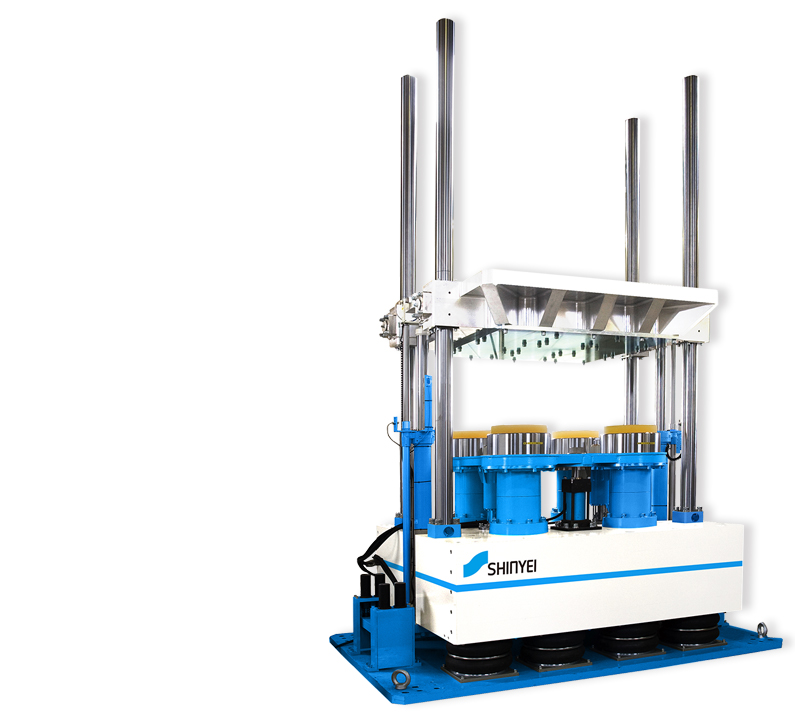

Single Drop Shock Tester / Shock Tower SDST Series


Single Drop Shock Tester / Shock Tower SDST Series
Click Image to Enlarge.

Single Drop Shock Tester / Shock Tower SDST Series

  • The sine half wave pulse which serves as necessary shock action time by exchange of a buffer object is generated.
  • The Drop height and Rebound Brake Mechanism mechanism prevents an sample colliding twice.
  • The influence on the circumference is reduced with the pneumatic springs and hydraulic damper device.
  • Automatic repetition operation is possible by setting up the number of times at a counter.
  • A shock stand with high rigidity.

Feature

  • The sine half wave pulse which serves as necessary shock action time by exchange of a buffer object is generated.
  • The Drop height and Rebound Brake Mechanism mechanism prevents an sample colliding twice.
  • The influence on the circumference is reduced with the pneumatic springs and hydraulic damper device.
  • Automatic repetition operation is possible by setting up the number of times at a counter.
  • A shock stand with high rigidity.

Applications

  • Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.
  • Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.

Specification

Model SDST-300 SDST-500 SDST-700 SDST-900 SDST-1100 SDST-1500
Table size (mm) 300 x 300 500 x 500 700 x 700 920 x 920 1150 x 1150 1500 x 1500
(approx inch) 12 x 12 20 x 20 36 x 36 36 x 36 45 x 45 59 x 59
Specimen max weight 50 kg 80 kg 100 kg 200 kg 300 kg 500 kg
(approx lbs) 110 lbs 176 lbs 220 lbs 440 lbs 661 lbs 1102 lbs
Shock pulse Half-sine
Acceleration range 100 - 3000 m/s2 (10-300G)
Pulse duration range 3 ms, 6 ms, 11 ms, 20 ms
Size (mm)
(W x D x H)
1100 x 640 x 2300 1300 x 700 x 2400 1600 x 900 x 2900 1800 x 1150 x 3200 2200 x 1300 x 3300 2500 x 1800 x 4100
(approx inch) 43.31 x 25.20 x 90.55 51.18 x 27.56 x 94.49 62.99 x 35.43 x 114.17 70.87 x 45.28 x 125.98 86.61 x 51.18 x 129.92 98.43 x 70.87 x 161.42
Capacity 900 kg 2500 kg 3500 kg 5000 kg 9000 kg 12000 kg
(approx lbs) 1984.13 lbs 5511.46 lbs 7716.05 lbs 11022.93 lbs 19841.27 lbs 26455.03 lbs
Controller size
(W x D x H mm)
520 x 400 x 950
(approx inch) 20.47 x 15.75 x 35.43
Power supply AC200V 3-phasese 10A AC200V 3-phasese 15A AC200V 3-phasese 20A
Applied Standards JIS C 60068-2-27, JIS Z 0202, IEC 60068-2-27, MIL-STD-810F, JIS E 3015
