DROP TOWER DT-202 series

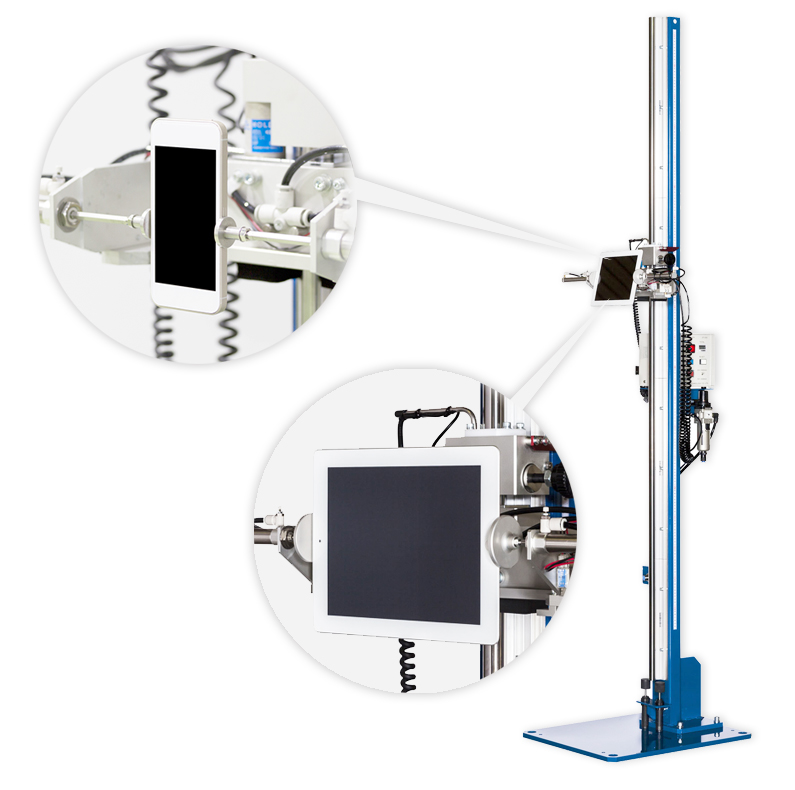

Drop Tester for Mobile Products DT-202, 202TB, 202AW

DT202

Drop Tester for Mobile Products such as mobile phone, smart phone, tablet, laptop.

DT-202 is a standard model of drop tester that provides accurate drop tests with a unique drop mechanism for smart phones, cell phones and other mobile products. The speci-men holding system retains the dropping posture of speci-mens, enabling it to provide drop tests superior in reproducibility.

DT-202TB has wide arms compare to DT-202. Its application is not only limited to the testing of mobile phones, but also extends to a broader variety of products such as lap-top PC, tablet device, HDD, medicine, food etc.. Also this tester has the same drop system as DT-202 for accurate drop tests.

DT-202AW is suitable for wider products and has the longest arm of holding specimen with adjustable width of arms.

Features

  • Specialized for light and small specimens
  • High Reproducibility
  • Easy Maintenance for Long Term Usage
  • Easy-to-Use Test Settings
  • Easy-Installation to any Location
  • Simple Setting by Simple Construction
  • Arm width is adjustable (DT-202AW model only)

Applied Standard

  • IEC 60068-2-31
  • JIS C 60068-2-31

Applications

  • Drop test for digital gadgets ; smart phones, cell phones, and digital gadgets.
  • Drop test for any electrical parts and small, light-weight object.
  • Drop test for tablet terminal and mobile computers.

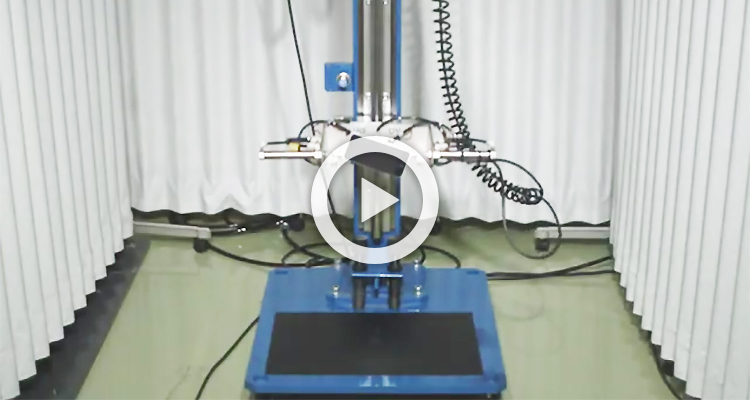

Simple operation

  • It can test a shock resistance of test sample holding in an arbitrary posture and free-falling.
  • The drop height can be settled easily by scale.
  • Fixing test sample by pneumatic pen cylinder.

with high-speed camera

Sample configuration of analysis system with high-speed camera

Detail drawing of supporting base.

DT-202 Detail drawing of supporting base

DT-202 Detail drawing of supporting base

DT-202TB Detail drawing of supporting base

DT-202TB Detail drawing of supporting base

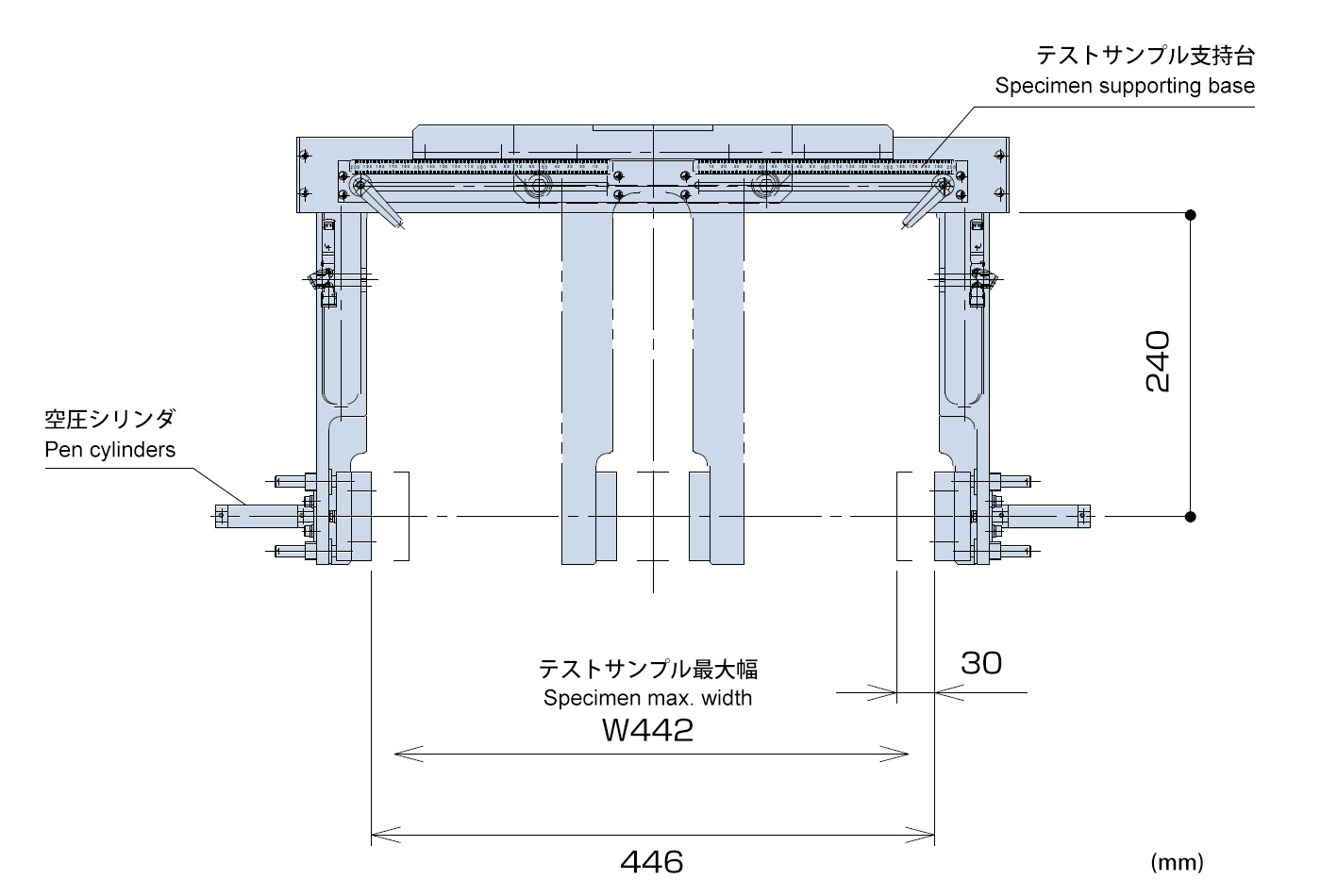

DT-202AW Detail drawing of supporting base

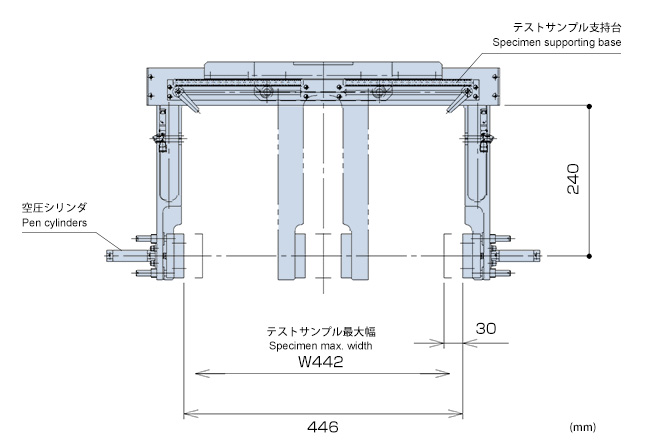

DT-202AW Detail drawing of supporting base

Specification

Model DT-202 DT-202TB DT-202AW
Test sample maximum weight (kg) 2
Drop height range (mm) 250 ~ 2000
Drop height setting method By the scale and setting guide
Drop motion of test sample support table By the permanent electromagnetic holder
Fastening and releasing operation of test sample By the pneumatic pen cylinder
Arm Width(mm) 3~150
(Fixed arm)
55~255
(Fixed arm)
0~446
(Adjustable arm)
Supporting Base Weight(kg) 2.2 2.8 7.2
Dimension of tester (mm) W600 × D500 × H2382 W616 × D600 × H2382 W692 × D800 × H2382
Mass of tester (kg) about 80 about 100
Base thickness (mm) 16
Feed air pressure 0.49MPa or higher, 1.2dm³, (when operate 6 times/min) or more 0.49MPa or higher, 4.3L/min, (when operate 10 times/min) or more
Power supply AC100 ~ 240V, single phase, 5A
Operation environment temperature (℃) 5 ~ 35
Option Casters, Remote controller, Additional stand for shock absorber(height of shock absorber up to 4200mm), Air compressor
