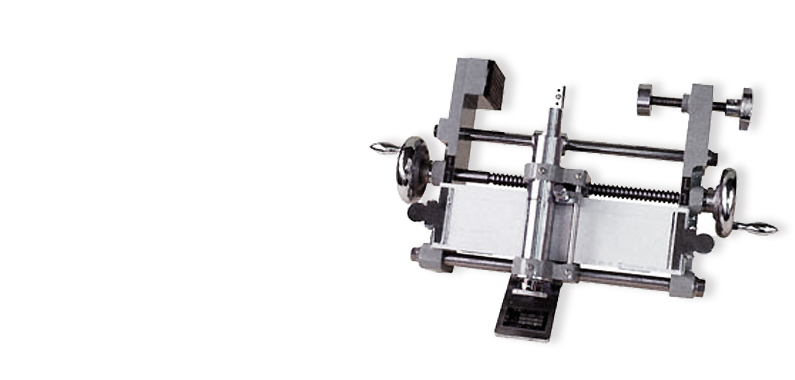

TS-3D - Wheel Abrasion Tester

Measuring Instruments for RAIL WAY

TS-3D

Product outline

TS-3D can record the wheel tread surface shape not only from wheels removed from the vehicle, but also from those still fitted in.

Features

  • Easy and accurate fitting to wheel.
  • Stylus and record pen are connected, so there is no error between original and recorded shapes.
  • Recording pen uses a ballpoint pen readily available on the General market, so replacement is easy.

Specification

Model TS-3D
Wheel diameter (mm) 800 × 950
Wheel width (mm) 125~135
Volume (mm) W338 × D252 × H200
Mass of instrument (kg) 3.5
