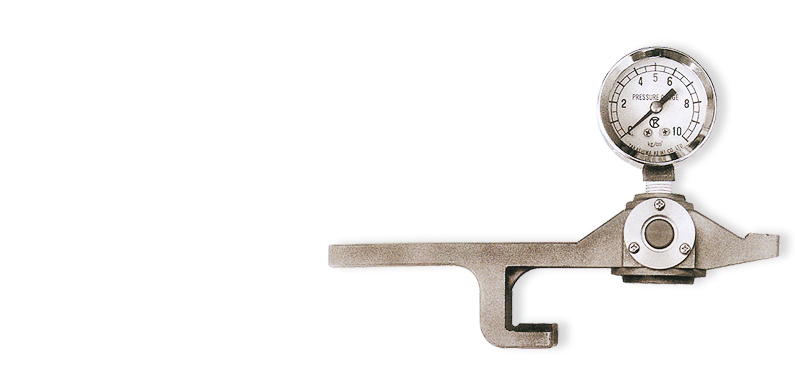

FG-2 - Portable Pressure Gauge for Railway Equipment

Measuring Instruments for RAIL WAY

FG-2

Product outline

FG-2 can measure the air pressure of railway equipment easily.

Features

  • Easy-inspection of pneumatic braking by fitting on air horse couple.
  • Relative air pressure 0.5 MPa (5kg / cm2), scale are identified in red.
  • At the push of a pressure-reducing valve releases the air easily.
  • Body casted from stainless steel and copper with to prevent corrosion prevention and is compact.

Specification

Model FG-2
Range of measurement (MPa) 0 ~ 1 (0 ~ 10kg/cm²)
Weight (g) about 500
