Field Data Recorder / Logger DER-1000

Distribution Environment Recorder

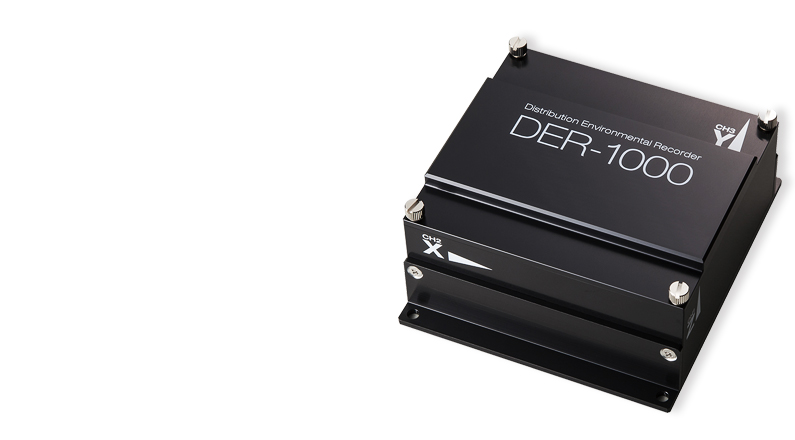

DER-1000

Transport Datalogger with Multi-analysis Function, PSD, Drop-height

DER-1000 is tri-axial data recorder for drop tests, measuring vibration, temperature / humidity in transportation continuous-ly max.100 days by large capability 1GB memory. Recorded data is available for multiple analyses, such as drop height, PSD, histogram, transportation check-up and PSD composition. Users can select High Spec. version or Normal Spec. version.

Features

  • Built in tri-axial acceleration sensor and temperature & humidity sensor.
  • Long term measurement for maximum 100days.
    *lithium battery x 4, 25℃ (depends on measuring condition setting)
  • Memory capacity 1GB.
  • Dead time zero recording
  • Two different versions (Normal spec. or High spec., should be selected when ordering).

Application

  • Distribution environment survey of package freight, and quality control.
  • Development of standards for package freight drop test and vibration test.
  • Development of packaging specification.
  • Finding problem on distribution environment.
  • Distribution traceability survay.

Specification

Model High Spec Normal Spec
Memory size 1GB 16MB
Continuous record time ※ Maximum 100 days Maximum 70 days
Trigger mode Acceleration / Time / W trigger Acceleration
Frame length 512 / 1024 / 2048 / 4096 1024 / 2048
Sampling (ms) 0.25 / 0.35 / 0.5 / 1 / 2 / 5 / 10 / 20 0.5 / 1 / 2
Acceleration measurement Tri-axial piezoelectric type ( 5 / 10 / 25 / 50G Acceleration range switchable )
Temperature & humidity Temperature : -20 ~ 60℃, Humidity : 0 ~ 100% rh
Battery 9V battery × 4 (max.), parallel connection
Interface USB
Size (mm) W121 × D109 × H58
Weight (g) 950
Case material Aluminum
OS Windows 7 / 10 (32 / 64bit)
Operating environment (℃) -20 ~ 60 (No condensing)
Option GPS matching

※ Lithium battery × 4, 25℃(depends on measuring condition setting)

Analysis Software

You can use to find your distribution data via analysis software.
Also calculate PSD and drop height, and histogram.

Analysis Software
