BUMP TESTER CDS series

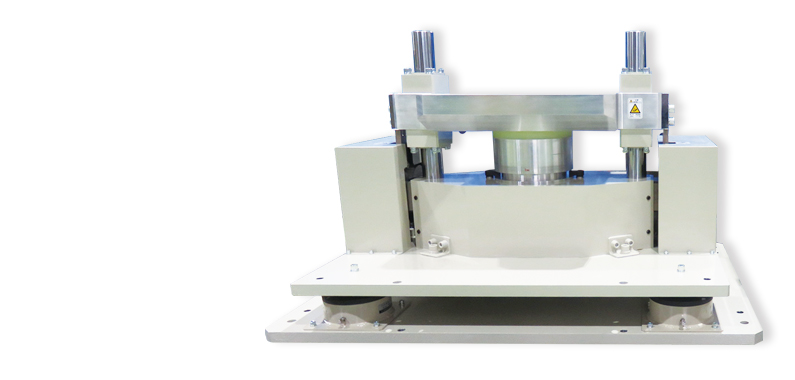

Continuous Shock Testing System (Bump Testing Machine)

CDS series

Shock Tester Specialized for Bump Test

BUMP TESTER Continuous Shock Testing System CDS is specialized to carry out continuous shock test by half-sine wave via cum drive mechanism, also known as bump test. It is mainly used for endurance testing of automotive parts like mirror, car audio, etc. .

Features

  • Specialized for continuous shock test
  • High Reproducibility
  • Easy Maintenance for Long Term Usage
  • Easy-to-Use Test Settings by cam motion
  • Simple Setting by Simple Construction
  • Set-up by Single-Layered Shock Absorber

Applied Standard

  • IEC 60068-2-27
  • JIS C 60068-2-27

Related Products

  • Acceleration Measuring System SM-500

Applications

  • Testing for automotive products, lamp, car audio and etc.

Specification

Model CDS-50 CDS-100
Table size (mm) 500 × 500 1000 × 1000
Specimen max weight (kg) 50 100
Shock pulse Half-sine
Acceleration range (m/s²) 60 ~ 1000 (6 ~ 100G)
Repetition rate
(per second)
1 ~ 3 1 ~ 2
Pulse duration (m/s) 2 / 6 / 16
Control system Automatic (1 ~ 99999 times) (by preset counter setting)
Size (W × D × H mm) 1020 × 900 × 900 1700 × 1200 × 1080
Capacity (kg) 750 2800
Power supply AC200V, 3-phasese, 600W AC200V, 3-phasese, 2.5kw
Applied Standards JIS C 60068-2-27, IEC 60068-2-27

Option

Safety equipments Mat switch / Patlite / Photoelectric switch / Safety fence etc.
Shock Manager
SM-500
Generated shock pulses on the table can be measured by SM-500 with high speed sampling. Captured data is displayed on your PC screen immediately.
Acceleration pickup when you need.
