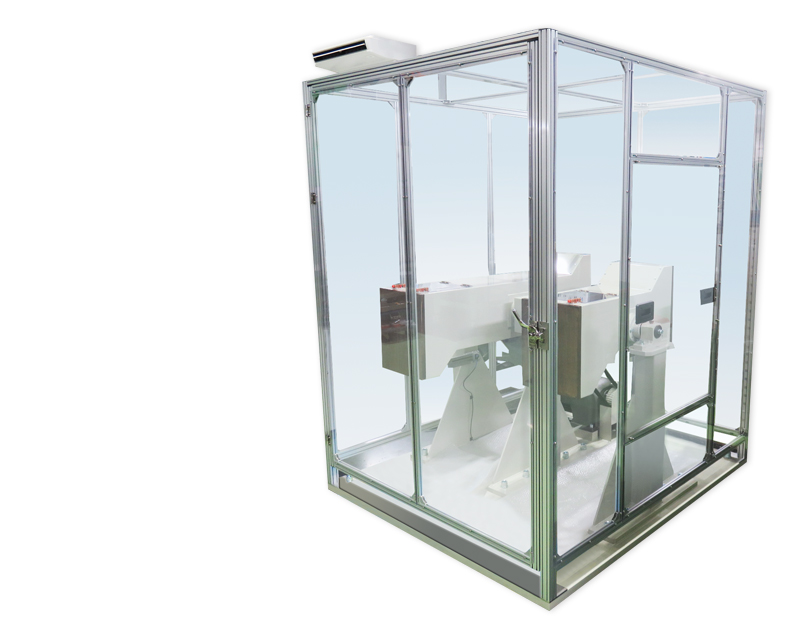

Rotating Drum Tester / Machine RDT-1000

Rotating Drum Tester RDT-1000 for smart phones, moblie phones, and remote controllers.

Fragility test for smart phones, moblie phones, and remote controllers by repeatedly dropping tests with rotating drum tester.

Feature

  • Remote type step less transmission controlling motor keeps high precision rotation at all time.
  • Two large and small rolling drums are parallel which is gearing with flanges.
  • Clear windows are found on each drum for confirming the dropping specimen.
  • For the safe operations, the guard walls are available.

Applications

  • Repeatedly drop tests for the shock resistance.
  • Fragility test for smart phones, moblie phones, and remote controllers.

Specification

Model RDT-1000
Specimen max weight 5 kg
(approx lbs) 11 lbs
Drop height range 500 mm up to 1000 mm
(approx inch) 20 inch up to 39 inch
Fall frequency per min 5 times up to 20 times per min
The number of process runs 1 up to 99999
Size (W x H x D mm) 1400 x 1640 x 1600
(approx inch) 39 x 102 x 69
Size of controller (W x H x D mm) 520 x 550 x 400
(approx inch) 20 x 22 x 16
Power supply AC200V 3 phase 2kw
Applied Standards JIS C 60068-2-31, IEC 60068-2-31
