Photoelectronic Sensor for Shock & Drop Testing System

Photoelectronic Sensor is a non-contact and penetration type safeguard which protects workers from the dangerous area of Drop / Shock tester.
If a photoelectronic sensor detects workers and things during starting of test equipment, it will enable control of repealing fall operation by interception of light, and will prevent an accident. Moreover, a worker's operation is not barred by using Photoelectronic Sensor.

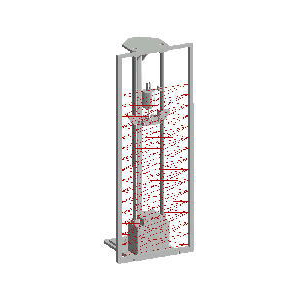

For Shock Testing System

For Shock Testing System

For Cushioning Shock Testing System

For Cushioning Shock Testing System

For Pendulum Shock Testing System

For Pendulum Shock Testing System

Feature

  • Comparatively, there is no restriction for detection.
  • According to a setting position, about form and size will be manufactured by mutual agreement.
  • It is detected as workers and things invading carelessly in area.

Specification

Model Photoelectronic Sensor
Voltage rating DC24V
Size Going into production about a size and form of Photoelectronic Sensor and its attachment lug by mutual agreement.
Other Combined use with other safeguards is also possible.
